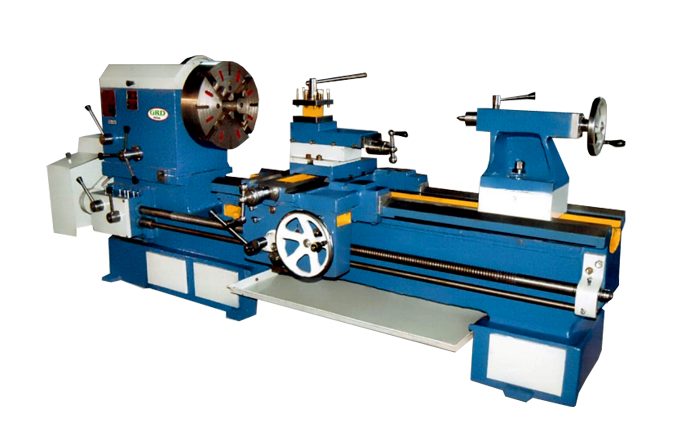

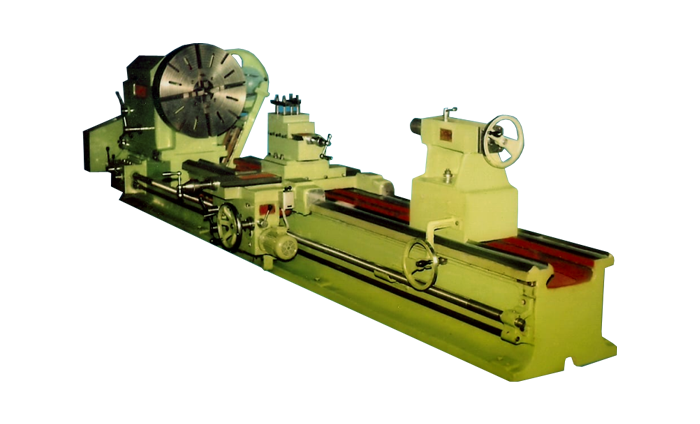

Technical Specification

Descriptions		Table-1					Table-2						Table-3
Bed Length	Ft.	10	12	14	16	20	10	12	14	16	18	20	10	12	14	16	18	20
Bed Width	Inch	18	18	18	18	18	20	20	20	20	20	20	24	24	24	24	24	24
Centre Height	"	16	16	16	16	16	18	18	18	18	18	18	20	20	20	20	20	20
Admit Centres	Ft	6	8	10	12	16	5.5	7.5	9.5	11.5	13.5	15.5	5	7	9	11	13	15
Hollow Spindle	Inch	3.5/8 each					14.1/8 each						14.1/8 each
Swing in Gap	Inch	50	50	50	50	50	54	54	54	54	54	54	60	60	60	60	60	60
Swing Over Slide	Inch	24	24	24	24	24	26	26	26	26	26	26	30	30	30	30	30	30
Swing Over Bed	Inch	32	32	32	32	32	36	36	36	36	36	36	40	40	40	40	40	40
Spindle Speeds	Inch	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8
Width of Gap opp. Face Plate	Inch	15	15	15	15	15	15	15	15	15	15	15	17	17	17	17	17	17
Lead Screw		2"x2 TPI					2"x2 TPI						2"x2 TPI
Face Plate	Inch	22	22	22	22	22	22	22	22	22	22	22	30	30	30	30	30	30
Power Required	H.P.	3	3	5	5	7.5	3	3	3	5	7.5	7.5	5	5	5	7.5	7.5	7.5

Descriptions		Table-4					Table-5						Table-6
Bed Length	Ft.	12	14	15	18	20	12	16	20	24	26	30	12	16	20	24	26	30
Bed Width	Inch	24	24	24	24	24	28	28	28	28	28	28	28	28	28	28	28	28
Centre Height	"	22	22	22	22	22	24	24	24	24	24	24	26	26	26	26	26	26
Admit Centres	Ft	7	9	11	13	15	5	9	13	17	19	23	5	9	13	17	19	23
Hollow Spindle	Inch	3.5/8 each					14.1/8 each						14.1/8 each
Swing in Gap	Inch	64	64	64	64	64	72	72	72	72	72	72	76	76	76	76	76	76
Swing Over Slide	Inch	33	33	33	33	33	36	36	36	36	36	36	40	40	40	40	40	40
Swing Over Bed	Inch	44	44	44	44	44	48	48	48	48	48	48	52	52	52	52	52	52
Spindle Speeds	Inch	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8
Width of Gap opp. Face Plate	Inch	17	17	17	17	17	20	20	20	20	20	20	20	20	20	20	20	20
Lead Screw		2"x2 TPI					2"x2 TPI						2"x2 TPI
Face Plate	Inch	30	30	30	30	30	40	40	40	40	40	40	40	40	40	40	40	40
Power Required	H.P.	5	5	5	7.5	7.5	10	10	10	15	15	20	10	10	10	15	15	15

Descriptions		Table-7						Table-8						Table-9
Bed Length	Ft.	12	16	20	24	26	30	12	16	20	24	26	30	12	16	20	24	26	30
Bed Width	Inch	30	30	30	30	30	30	32	32	32	32	32	36	36	36	36	36	36	36
Centre Height	"	28	28	28	28	28	28	30	30	30	30	30	30	32	32	32	32	32	32
Admit Centres	Ft	5	9	13	17	19	23	5	9	13	17	19	23	7	9	13	17	19	23
Hollow Spindle	Inch	4.1/8 each						4.1/8 each						4.1/8 each
Swing in Gap	Inch	80	80	80	80	80	80	84	84	84	84	84	84	88	88	88	88	88	88
Swing Over Slide	Inch	44	44	44	44	44	44	48	48	48	48	48	48	52	52	52	52	52	52
Swing Over Bed	Inch	56	56	56	56	56	56	60	60	60	60	60	60	64	64	64	64	64	64
Spindle Speeds	Inch	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8
Width of Gap opp. Face Plate	Inch	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20
Lead Screw		2.1/2"x2 TPI						2.1/2"x2 TPI						2.1/2"x2 TPI
Face Plate	Inch	40	40	40	40	40	40	40	40	40	40	40	48	48	48	48	48	48	48
Power Required	H.P.	10	10	10	15	10	20	10	10	10	15	20	20	10	10	10	15	20	20

Descriptions		Table-10						Table-11						Table-12
Bed Length	Ft.	14	16	20	24	26	30	14	16	20	24	26	30	14	16	20	24	26	30
Bed Width	Inch	42	42	42	42	42	42	42	42	42	42	42	42	44	44	44	44	44	44
Centre Height	"	36	36	36	36	36	36	38	38	38	38	38	38	42	42	42	42	42	42
Admit Centres	Ft	6	8	12	16	18	22	6	8	12	16	18	22	6	8	12	16	18	22
Hollow Spindle	Inch	4.1/8 each						4.1/8 each						4.1/8 each
Swing in Gap	Inch	96	96	96	96	96	96	100	100	100	100	100	100	108	108	108	108	108	108
Swing Over Slide	Inch	58	58	58	58	58	58	62	62	62	62	62	62	70	70	70	52	52	52
Swing Over Bed	Inch	56	72	72	72	72	72	76	76	76	76	76	76	64	64	64	70	70	70
Spindle Speeds	Inch	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8
Width of Gap opp. Face Plate	Inch	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20
Lead Screw		2.1/2"x2 TPI						2.1/2"x2 TPI						2.1/2"x2 TPI
Face Plate	Inch	48	48	48	48	48	48	48	48	48	48	48	48	48	48	48	48	48	48
Power Required	H.P.	10	10	15	20	20	10	15	15	20	20	10	10	15	15	20	20	20	20
